When I removed the infamous E32-300 electrical harness and ammeter from the original panel, I followed someone's idea of preplacing the ammeter gauge with a FARIA oil pressure gauge... and then waited to complete the job.

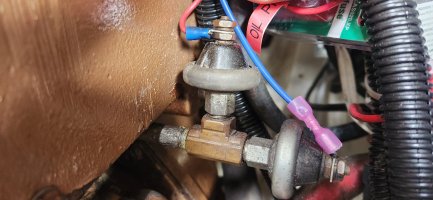

Twelve months later, we detected oil leak, possibly coming from the point at which the factory M-25 oil pressure switch is located, just below manifold on port side. Previous Owner (PO) had replaced this one switch with a 4-inch pipe nipple male 1/8-27 NPT with a "T" fitting to receive two switches:
#1 oil pressure switch to bullet light directly on the engine's cockpit panel above "oil" disconnected fan toggle switch.
#2 oil pressure switch to separate Piezoelectric Buzzer mounted near cockpit panel above fuel gauge (see pic).
When researching these switches and ideas for finally adding an oil pressure sending unit, I discovered a couple items:
Kubota engine female threads at this port are British Standard Pipe Threads (BSPT Tapered)) as reported by @newgringo
ericsonyachts.org
and @Kenneth K
ericsonyachts.org
So What? Well, it would seem an adapter to match BSPT and NPT is required.
While at my favorite local marine resource, (Nebar Hose & Fittings LLC: https://www.nebaronline.com/ )

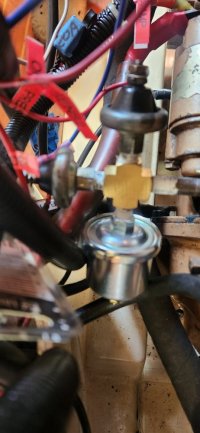

I not only acquired the adapter off the shelf, but also an "X" fitting with four female 1/8-27 NPT threads to receive the existing two oil pressure switches AND one new oil pressure sending unit. ...
Does it all fit? YUP.
I also replaced the existing 4-inch pipe nipple with a new black steal one from Ballard Industrial: https://www.ballardindustrial.com/
Now, to reconnect and new-connect wiring from switches and sending unit and new pressure gauge. Faria gauge instructions were very helpful. https://defender.com/assets/pdf/faria/faria_oil-pressure_install.pdf
These were excellent resources if you're planning a similar install:
ericsonyachts.org
More on oil pressure switches:
ericsonyachts.org
Parts:
Faria, Oil Pressure Sender, 1/8 NPTF, 80 PSI, Single Station, Standard Ground
Sierra Single Station Oil Pressure Sender - 80 PSI - Sender Code C (1/8"-27 thread size)
Adapter with sealing-washer(NPT-female to BSPT-male)
4" black steal pipe nipple (male both ends)
"X" brass 4-female fitting 1/8-27 threads
Pics: pre-and post- conditions; M-25 oil pressure specs from service manual; panel.
Vid: short test:
Concerns? Just that the threads mismatching/crossing from P.O. 1st install of pipe nipple.
Question: Is the pressure gauge really worth the effort? It sure plugs a round hole in the panel!
Was your backside ever saved by watching this gauge?
