My mechanic installed my M-25XP engine in our 1987 Ericson 32-3 after removing it to replace the transmission and the injectors. He got it running, back in the boat and installed on new mounts, then disappeared on me. He didn't hook up the starter wires, not sure about what wires go to starter and where. I know it's a simple system but want to be certain.
Guest viewing is limited
- You have a limited number of page views remaining
- 27 guest views remaining
- Register now to remove this limitation
starter remove and replace question.
- Thread starter Jcrilly1
- Start date

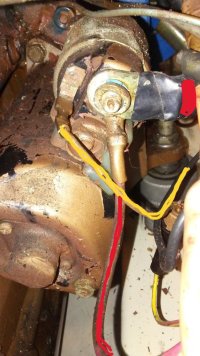

Yeah, it's pretty simple. The large red cable from the battery switch goes on the large terminal bolt of the starter. On top of this, the smaller red cable (which sends power to the engine panel key switch) shares this large terminal. The yellow wire with a female spade terminal clips on the male spade terminal on the starter solenoid.
The stater and solenoid ground themselves to the engine block via metal-to-metal contact. You should already have a large black battery-type cable grounding the engine block back to the battery bank.
The stater and solenoid ground themselves to the engine block via metal-to-metal contact. You should already have a large black battery-type cable grounding the engine block back to the battery bank.
